LDRT3D 3" Precision High Center Beam Install-from-Below Round Downlight

Round downlight with integrated heat sink and remote LED driver junction box fits 2x6 construction
Wing clamps hold module securely in ceiling in new construction with optional mounting frame or remodel applications
Interchangeable precision optics in 8°, 12°, 10º-70° in 5° increments, and assymetric distributions
Unmatched trims and finishes for every space and style in standard flange or plaster knife edge rimless
90, 97 or 98 CRI (2 SDCM), 6 Color Temperatures, Dim-to-Warm™, VividTune™ Tunable White, & BioUp™ Melanopic
Standard dimming down to 1%, ENERGY STAR® qualified; Integral or remote driver options
Lumens: 250 – 1,700
Declare® Certified: Contains no LBC Red List chemicals
Wavelinx and DLVP connected systems, 5-year warranty
Plaster lathing ring accessory offered for flush reflector transition

Spec Sheets

Photometrics

Where to Buy

LDRT3D 3" Precision High Center Beam Install-from-Below Round Downlight

Where to Buy Contact Us

Seamless Light. Installed from Below.

The 3" Round Install-from-Below Downlight delivers refined architectural illumination with clean, fixed precision. Field-interchangeable optics provide controlled beam distributions for consistent, center-aligned light. Designed for plaster ceilings, this luminaire installs from below without requiring attic access, making it ideal for remodels and retrofits, while an optional new construction mounting frame supports seamless integration in new construction projects as well.

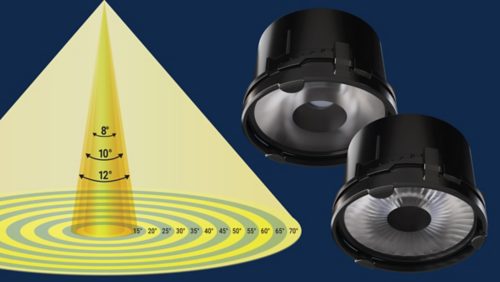

Precision Optical Performance

Field-interchangeable optics lock into place with a simple twist and provide beam distributions from narrow spots to wide floods in 5° increments, including asymmetric options. High optical efficiency minimizes stray light, and the integral lens holder accepts up to two 2" diameter filters or lenses for added control.

VividTune fine-tuning of light

Whether you’re looking to optimize productivity or simply add dramatic flair, VividTune's tunable white technology allows you to adjust the color temperature from warm white to cool white, creating an environment that fosters productivity and concentration.

Learn More

D2W™ Dim-to-warm solution

Bring the warm, dim glow reminiscent of traditional incandescent and halogen sources into your space, for a fraction of the energy consumption, with our Dim-to-Warm solution.
