Streetworks

ARCH Archeon Large Cobrahead Roadway Luminaire

  • Die-cast aluminum construction, Single latch tool-less entry
  • Replaces up to 1000W equivalent HID, -40°C to 40°C operating range
  • Pole-mounted, Optional arm and offset adjustable arm mounting
  • 120-277V 50/60Hz, 347V 60Hz or 480V 60Hz operation, IP66 rated
  • Lumens: 14,000 to 37,000, 20 lumen packages, Up to 178 lm/W
  • 4000K standard, optional 2700K, 3000K, 5000K CCT, CRI: 70 standard
  • 5 high-efficiency, patented AccuLED optical distributions
  • 10kV/10kA surge protection options, 3G vibration rated, 7-pin
  • Greater than 98% lumen maintenance after 60,000 hours at 40°C
ARCH Archeon Large Cobrahead Roadway Luminaire

ARCH Archeon Large Cobrahead Roadway Luminaire

Modern cobrahead design. Superior performance. Customer-focused features.

The Archeon Large LED roadway luminaire delivers all the optical performance benefits from the advanced LED technology in a modern, yet familiar cobrahead design. The patented, high-efficiency AccuLED Optics™ system provides uniform and energy conscious illumination and our customer-focused features include single latch tool-less entry for easy installation and maintenance, and industry-leading surge protection and control options.

Roadway lighting, we’ve got you covered.

Roadway lighting, we’ve got you covered.

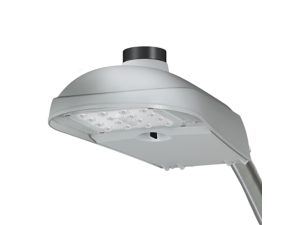

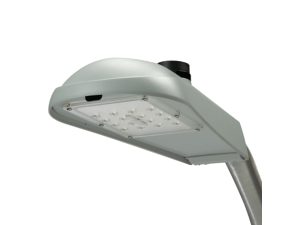

The Archeon family is available in 4 sizes to satisfy specific application needs, while offering a cohesive look when desired.

Precisely designed optics

Precisely designed optics

A choice of 6 high efficiency AccuLED Optics, available in Type II, III, IV wide and V square wide, are precisely designed to shape the distribution, maximizing efficiency and application spacing.

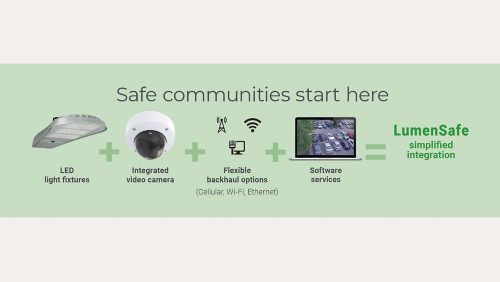

All-in-one lighting and surveillance

All-in-one lighting and surveillance

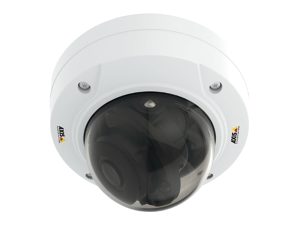

Lighting is everywhere. Why shouldn’t it do more? Outdoor lighting provides the perfect platform for safer, more connected communities. Now, besides just keeping key areas well-lit, lighting can help you keep an eye on things. LumenSafe is an all-in-one solution combining LED lighting with a high-definition camera.
